Over 70% of recent broadband deployments in metropolitan U.S. projects now call for fiber-to-the-home. This accelerated move toward full-fiber networks underscores the urgent need for dependable production equipment.
Fiber Secondary Coating Line
Fiber Ribbon Line
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable manufacturing line systems for the U.S. market market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines together with control systems. This line produces drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, as well as LANs.
This high-performance FTTH cable making machinery delivers measurable business value. It enables higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers see reduced labor costs and material waste through automation. Full delivery services provide installation and operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also covers SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs commonly use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model offers on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. This system further incorporates lifetime technical support together with operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Main Takeaways
- FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
FTTH Cable Production Line Technology Explained
The fiber optic cable production process for FTTH requires precise control at every stage. Cable makers use integrated lines that combine drawing, coating, stranding, together with sheathing. That approach boosts yield together with speeds up market entry. This system addresses the needs of both residential as well as enterprise deployments in the United States.
Here, we summarize the core components together with technologies driving modern manufacturing. Each module must operate with precise timing together with reliable feedback. This choice of equipment affects product output quality, cost, and flexibility for various cable designs.
Core Components Of Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering together with extrusion systems produce 600–900 µm jackets for indoor as well as drop cables.

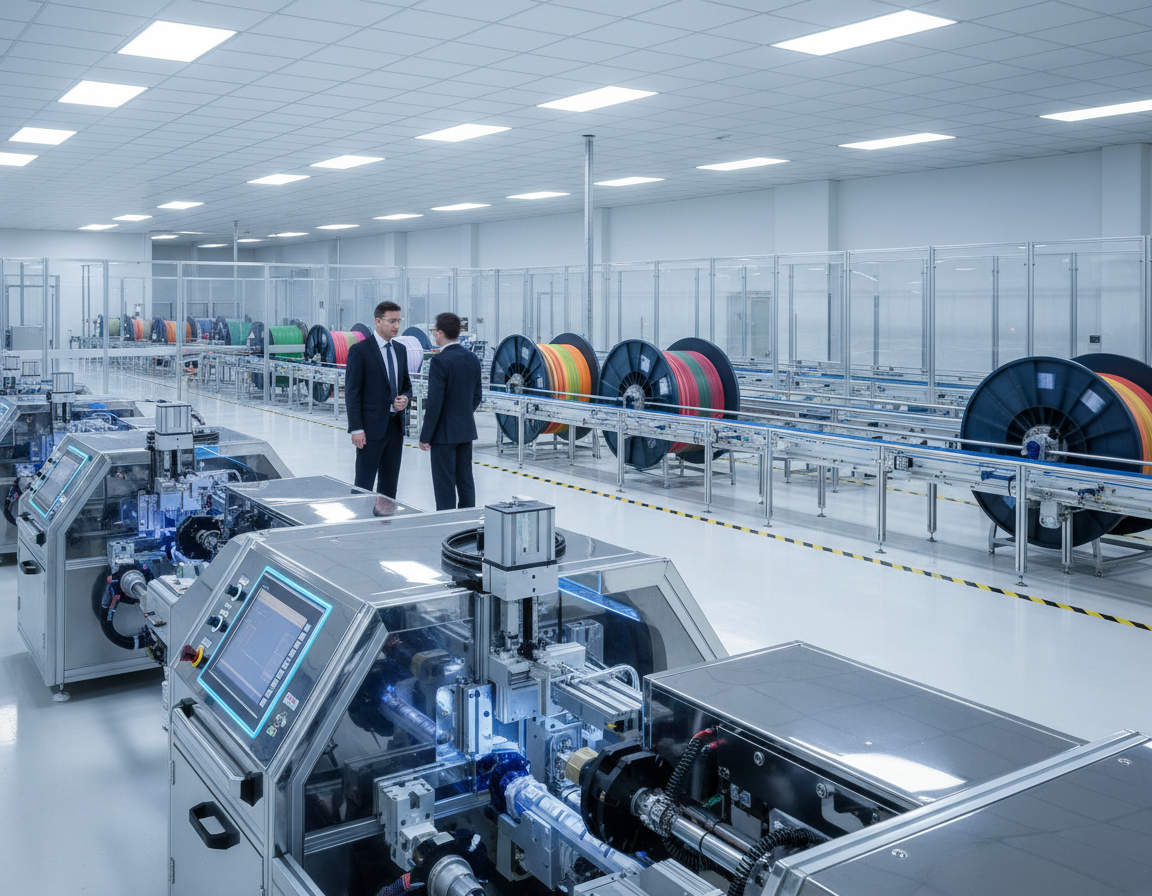

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, using hand transfers together with basic controls. Modern facilities now rely on PLC-controlled, synchronized systems using touchscreen HMIs.
Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, as well as armored formats. This move supports automated fiber optic cable production as well as cuts labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off as well as take-up, keeps geometry stable during fast-cycle runs. Multi-zone temperature control using Omron PID together with precision heaters helps ensure consistent extrusion consistency.
High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Equipment | Advantage |
|---|---|---|
| Optical fiber drawing | Draw tower with automated tension feedback | Stable core diameter and reduced attenuation |
| Fiber secondary coating | Dual-layer UV coaters | Uniform 250 µm coating for durability |
| Fiber coloring | Multi-channel fiber coloring machine | Precise identification for splicing and installation |
| Fiber stranding | SZ line with servo control for up to 24 fibers | Stable lay length for ribbon and loose tube designs |
| Extrusion & sheathing | Energy-saving extruders with multi-zone heaters | PE, PVC, or LSZH jackets with tight dimensional control |
| Cable armoring | Steel tape or wire armoring units | Stronger mechanical protection for outdoor applications |
| Cooling and curing | Water troughs and UV dryers | Fast profile stabilization and reduced defects |
| Testing | Inline geometry and attenuation measurement | Immediate quality verification and compliance data |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic manufacturing equipment and modern manufacturing equipment helps firms meet tight tolerances. That decision enables efficient automated fiber optic cable manufacturing as well as positions companies to deliver on scale and consistency.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, together with UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off together with winder stages prevents microbends and helps ensure consistent coating thickness across long runs.
Single together with dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance together with stripability. This helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters guide preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Processing
This fiber draw tower is the core of optical fiber drawing. This system softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. This step sets the refractive-index profile together with attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback as well as tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable line output process. Modern towers log metrics for traceability together with rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D together with bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment as well as tension as the fiber enters coating, coloring, or ribbon count stations. That transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These integrated features help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| System Feature | Main Purpose | Target Value |
|---|---|---|
| Multi-zone furnace | Uniform preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Real-time diameter control | Control core/cladding geometry while reducing attenuation | ±0.5 μm tolerance |
| Tension and cooling management | Prevent microbends and control fiber strength | Defined tension by fiber type |
| Automatic pay-off integration | Secure handoff to secondary coating and coloring | Matched feed rates to avoid slip |
| Inline test stations | Check attenuation, tensile strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Line Technology In Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing rely on SZ approaches to meet tight bend together with axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration using a downstream fiber cable sheathing line streamlines manufacturing as well as lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs together with UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire featuring adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring and identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors together with accelerates field work. Advanced equipment combines fast coloring featuring inline inspection, ensuring high throughput together with low defect rates.
Today’s high-output coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly lowers field faults as well as accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs together with material compatibility. Leading equipment accepts UV-curable pigments together with inks, compatible using common coatings as well as extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye together with other established vendors offer customizable channels, remote diagnostics, and onsite training. Such supplier support cuts ramp-up time together with enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fibers In Metal Tube Production
Metal tube together with metal-armored cable assemblies offer robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement together with controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This method benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing together with extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement together with align featuring sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling featuring SZ stranding together with sheathing lines. These solutions include operator training as well as maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable manufacturing modules, ease of changeover, as well as service support for field upgrades. Those points reduce downtime as well as protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Modern data networks require efficient assemblies that pack more fibers into less space. Cable makers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method employs parallel processes as well as precise geometry to meet the needs of MPO trunking together with backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls as well as speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, together with turnkey integration featuring sheathing together with testing stations support bespoke fast-cycle fiber cable production line requirements.
| Production Feature | Fiber Ribbon Line | Compact Fiber Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical Speed | As high as 800 m/min | Up to 600–800 m/min | Greater throughput for large-scale deployments |
| Core processes | Automated alignment, bonding, and curing | Extrusion, buffering, tight-tolerance winding | Consistent geometry and lower insertion loss |
| Materials | Engineered tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Long-term reliability and safety compliance |
| Testing | In-line attenuation and geometry checks | Dimensional control and tension monitoring | Lower failure rates and faster rollout |
| Integration | Sheathing and splice-ready stacking | Modular units supporting high-density cable designs | Simplified MPO trunking and backbone construction |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- as well as 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off together with take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. This testing regime verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
How Optical Fiber Drawing Meets Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers as well as system integrators, partnering with reputable suppliers is key. They should offer turnkey systems featuring Siemens or Omron-based controls. That contains on-site commissioning, remote diagnostics, as well as lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing and reduce time to manufacturing.
Technically, ensure line configurations adhere to IEC 60794 together with ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, as well as schedule engineer commissioning as well as operator training.
